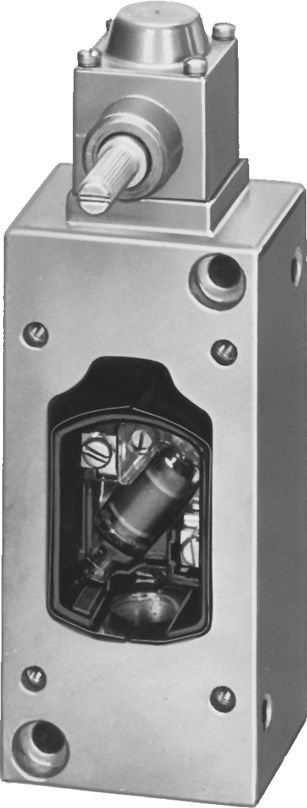

802XR Концевой выключатель для взрывоопасных зон

Код

Артикул

Описание

160083

802XR-A3C7

Lever Type — Spring Return;  Lever Movement: Clockwise. Torque/Force to Operate, Max.: 0.167 N•m (1.5 lb•in). Travel to Operate Contacts, Max.: 17°. Maximum Travel: 42°. Travel to Reset Contacts, Max.: 10°. Contact Type: N.C.

160082

802XR-A3F7

Lever Type — Spring Return;  Lever Movement: Clockwise. Torque/Force to Operate, Max.: 0.167 N•m (1.5 lb•in). Travel to Operate Contacts, Max.: 17°. Maximum Travel: 42°. Travel to Reset Contacts, Max.: 10°. Contact Type: N.O.

160087

802XR-A4C7

Lever Type — Spring Return;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.167 N•m (1.5 lb•in). Travel to Operate Contacts, Max.: 17°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 10°. Contact Type: N.C.

160086

802XR-A4F7

Lever Type — Spring Return;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.167 N•m (1.5 lb•in). Travel to Operate Contacts, Max.: 17°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 10°. Contact Type: N.O.

160079

802XR-AC7

Lever Type — Spring Return;  Lever Movement: Clockwise or Counterclockwise. Torque/Force to Operate, Max.: 0.34 N•m (3 lb•in). Travel to Operate Contacts, Max.: 16°. Maximum Travel: 42°. Travel to Reset Contacts, Max.: 9°. Contact Type: N.C.

160078

802XR-AF7

Lever Type — Spring Return;  Lever Movement: Clockwise or Counterclockwise. Torque/Force to Operate, Max.: 0.34 N•m (3 lb•in). Travel to Operate Contacts, Max.: 16°. Maximum Travel: 42°. Travel to Reset Contacts, Max.: 9°. Contact Type: N.O.

160095

802XR-AMC7

Lever Type — Maintained Contact;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.25 N•m (2.25 lb•in). Travel to Operate Contacts, Max.: 70°? . Maximum Travel: 84°? . Travel to Reset Contacts, Max.: 35°. Contact Type: N.C.

160094

802XR-AMF7

Lever Type — Maintained Contact;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.25 N•m (2.25 lb•in). Travel to Operate Contacts, Max.: 70°? . Maximum Travel: 84°? . Travel to Reset Contacts, Max.: 35°. Contact Type: N.O.

160099

802XR-BAC7

Lever Type — Maintained Contact;  Operator Type: Adjustable Top Push Rod. Torque/Force to Operate, Max.: 15.6 N (3.5 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.C.

160098

802XR-BAF7

Lever Type — Maintained Contact;  Operator Type: Adjustable Top Push Rod. Torque/Force to Operate, Max.: 15.6 N (3.5 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.O.

160097

802XR-BC7

Lever Type — Maintained Contact;  Operator Type: Top Push Rod. Torque/Force to Operate, Max.: 13.4 N (3 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.C.

160096

802XR-BF7

Lever Type — Maintained Contact;  Operator Type: Top Push Rod. Torque/Force to Operate, Max.: 13.4 N (3 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.O.

160101

802XR-CC7

Lever Type — Maintained Contact;  Operator Type: Side Push Rod. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.C.

160100

802XR-CF7

Lever Type — Maintained Contact;  Operator Type: Side Push Rod. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.O.

160103

802XR-DC7

Lever Type — Maintained Contact;  Operator Type: Top Push Roller. Torque/Force to Operate, Max.: 15.6 N (3.5 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.C.

160102

802XR-DF7

Lever Type — Maintained Contact;  Operator Type: Top Push Roller. Torque/Force to Operate, Max.: 15.6 N (3.5 lb). Travel to Operate Contacts, Max.: 1.75 mm (0.069 in.). Maximum Travel: 5.1 mm (0.202 in.). Travel to Reset Contacts, Max.: 0.71 mm (0.028 in.). Contact Type: N.O.

160085

802XR-H1C7

Lever Type — Spring Return;  Lever Movement: Clockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.C.

160084

802XR-H1F7

Lever Type — Spring Return;  Lever Movement: Clockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.O.

160089

802XR-H2C7

Lever Type — Spring Return;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.C.

160088

802XR-H2F7

Lever Type — Spring Return;  Lever Movement: Counterclockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 50°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.O.

160081

802XR-HC7

Lever Type — Spring Return;  Lever Movement: Clockwise or Counterclockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 53°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.C.

160080

802XR-HF7

Lever Type — Spring Return;  Lever Movement: Clockwise or Counterclockwise. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•in). Travel to Operate Contacts, Max.: 7°. Maximum Travel: 53°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.O.

160107

802XR-K1C7

Lever Type — Maintained Contact;  Operator Type: Side Push Horizontal Roller. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.0218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.C.

160106

802XR-K1F7

Lever Type — Maintained Contact;  Operator Type: Side Push Horizontal Roller. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.0218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.O.

160105

802XR-KC7

Lever Type — Maintained Contact;  Operator Type: Side Push Vertical Roller. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.0218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.C.

160104

802XR-KF7

Lever Type — Maintained Contact;  Operator Type: Side Push Vertical Roller. Torque/Force to Operate, Max.: 20.0 N (4.5 lb). Travel to Operate Contacts, Max.: 3.2 mm (0.125 in.). Maximum Travel: 5.5 mm (0.0218 in.). Travel to Reset Contacts, Max.: 1.5 mm (0.057 in.). Contact Type: N.O.

160091

802XR-L1C7

Lever Type — Spring Return;  Lever Movement: Clockwise Lever cannot move Counterclockwise. Torque/Force to Operate, Max.: 0.45 N•m (4 lb•in). Travel to Operate Contacts, Max.: 20°. Maximum Travel: 91°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.C.

160090

802XR-L1F7

Lever Type — Spring Return;  Lever Movement: Clockwise Lever cannot move Counterclockwise. Torque/Force to Operate, Max.: 0.45 N•m (4 lb•in). Travel to Operate Contacts, Max.: 20°. Maximum Travel: 91°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.O.

160093

802XR-L2C7

Lever Type — Spring Return;  Lever Movement: Counterclockwise Lever cannot move Clockwise. Torque/Force to Operate, Max.: 0.45 N•m (4 lb•in). Travel to Operate Contacts, Max.: 20°. Maximum Travel: 91°. Travel to Reset Contacts, Max.: 11°. Contact Type: N.C.

160092

802XR-L2F7

Lever Type — Spring Return;  Lever Movement: Counterclockwise Lever cannot move Clockwise. Torque/Force to Operate, Max.: 0.45 N•m (4 lb•in). Travel to Operate Contacts, Max.: 20°. Maximum Travel: 91°. Travel to Reset Contacts, Max.: 3.5°. Contact Type: N.O.

160109

802XR-WS1C7

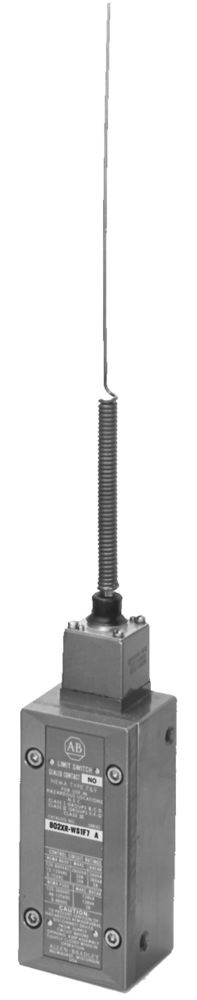

Cat Whisker — Spring Return; Operator Type: Wire Cat Whisker. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•ft). Travel to Operate Contacts, Max.: 11°. Maximum Travel ? : 11°. Travel to Reset Contacts, Max.: 5°. Contact Type: N.C.

160108

802XR-WS1F7

Cat Whisker — Spring Return; Operator Type: Wire Cat Whisker. Torque/Force to Operate, Max.: 0.51 N•m (4.5 lb•ft). Travel to Operate Contacts, Max.: 11°. Maximum Travel ? : 11°. Travel to Reset Contacts, Max.: 5°. Contact Type: N.O.
