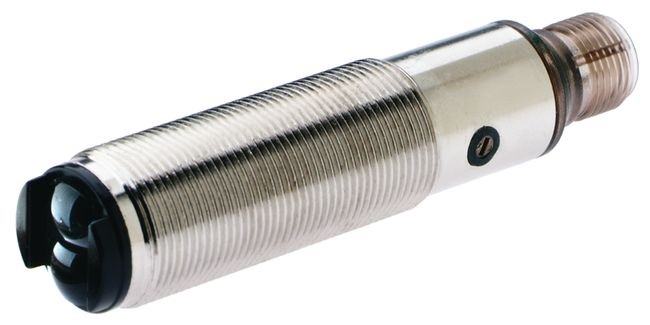

42CM Датчики фотоэлектрические металлические цилиндрические

Код

Артикул

Описание

159229

42CM-B2LNBC-D4

Sensing Mode: Background Suppression. Light Source: Class 1 laser 650 nm. Sensing Distance: 50 mm (2 in.). Sensitivity Adjustment: No Adjustment. Output Function: Selectable light or dark operate. Output Type: NPN

159230

42CM-B2LNBE-D4

Sensing Mode: Background Suppression. Light Source: Class 1 laser 650 nm. Sensing Distance: 100 mm (3.9 in.). Sensitivity Adjustment:  . Output Function:  . Output Type:

158813

42CM-B2LPBC-D4

Sensing Mode: Background Suppression. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0,05 (0,2). Output Type/Capacity/Response  Time: Selectable L.O. or D.O.PNP/100 mA/0.5 ms. Connection Type: 4-pin micro (M12) QD

158814

42CM-B2LPBE-D4

Sensing Mode: Background Suppression. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0,1 (0,33). Output Type/Capacity/Response  Time: Selectable L.O. or D.O.PNP/100 mA/0.5 ms. Connection Type: 4-pin micro (M12) QD

158812

42CM-D1MPAL-D4

Sensing Mode: Standard Diffuse. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0…0.4 (0…1.1) adjustable. Output Type/Capacity/Response  Time: L.O. & D.O.PNP/100 mA/2 ms. Connection Type: 4-pin micro (M12) QD

159225

42CM-D2MNAE-D4

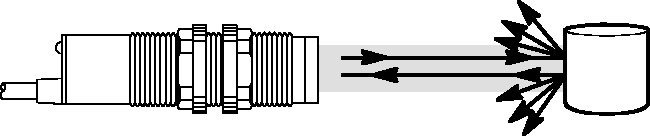

Sensing Mode: Diffuse. Light Source: Visible red 660 nm. Sensing Distance: 3…100 mm (0…3.9 in.). Sensitivity Adjustment: Potentiometer. Output Function: Light and dark operate. Output Type: NPN

159226

42CM-D2MNAL-D4

Sensing Mode: Diffuse. Light Source: Visible red 660 nm. Sensing Distance: 3…400 mm (0…15.7 in.). Sensitivity Adjustment:  . Output Function:  . Output Type:

158811

42CM-D2MPAE-D4

Sensing Mode: Standard Diffuse. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0…0.1 (0…0.33) adjustable. Output Type/Capacity/Response  Time: L.O. & D.O.PNP/100 mA/2 ms. Connection Type: 4-pin micro (M12) QD

159227

42CM-D2MPAL-D4

Sensing Mode: Diffuse. Light Source: Visible red 660 nm. Sensing Distance: 3…400 mm (0…15.7 in.). Sensitivity Adjustment:  . Output Function:  . Output Type:

159228

42CM-D8MNA-D4

Sensing Mode: Diffuse. Light Source: Class 1 laser 650 nm. Sensing Distance: 3…300 mm (0…11.8 in.). Sensitivity Adjustment: Teach Button. Output Function:  . Output Type: NPN

158824

42CM-D8MPA-D4

Operating Voltage/Supply Current: Diffuse 10…30V DC,25 mA. Sensing Distance[m (ft)]@ 2x Margin: 0,003 ... 0,3 (0,01 ... 0,98). Output Type/Capacity/Response  Time: LO & DO PNP/100 mA/0.7 мс. Connection Type: 4-pin micro (M12) QD

158815

42CM-E1EZB-D4

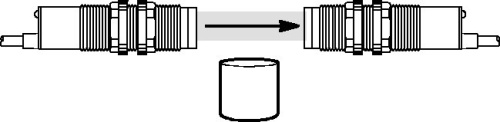

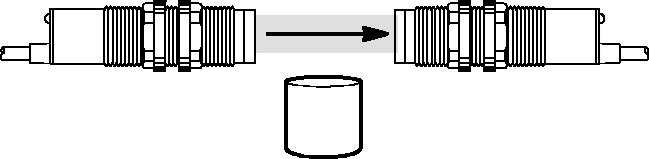

Sensing Mode: Transmitted Beam. Operating Voltage/Supply Current: 10…30V DC, 25 mA. Sensing Distance [m (ft)]: 0,003 ... 20 (0,01 ... 65,6). Output Type/Capacity/Response  Time:  . Connection Type: 4-pin micro (M12) QD

158826

42CM-E8EZB-D4

Operating Voltage/Supply Current: Transmitted Beam, Emitter 10…30V DC,25 mA. Sensing Distance[m (ft)]@ 2x Margin: 0.003…50 (0.01…164) adjustable. Output Type/Capacity/Response  Time: N/Alight source. Connection Type: 4-pin micro (M12) QD

159223

42CM-P2MNB-D4

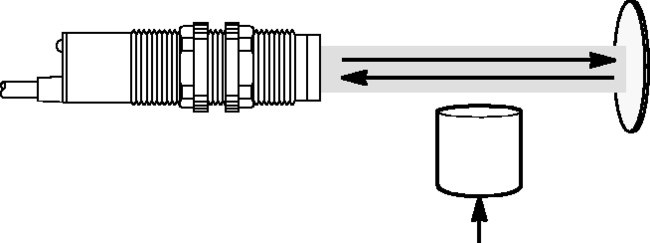

Sensing Mode: Polarized Retroreflective. Light Source: Visible red 660 nm. Sensing Distance: 0.003…3 m (0…9.9 ft). Sensitivity Adjustment:  . Output Function:  . Output Type: NPN

158809

42CM-P2MPB-D4

Sensing Mode: Polarized Retroreflective. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0,003 ... 3 (0,01 ... 9,9). Output Type/Capacity/Response  Time: L.O. & D.O.PNP/100 mA/4 ms. Connection Type: 4-pin micro (M12) QD

159224

42CM-P8MNB-D4

Sensing Mode: Polarized Retroreflective. Light Source: Class 1 laser 650 nm. Sensing Distance: 0.003…30 m (0…78 ft). Sensitivity Adjustment: Teach Button. Output Function: Light and dark operate. Output Type: NPN

158825

42CM-P8MPB-D4

Operating Voltage/Supply Current: Polarized Retroreflective 10…30V DC,25 mA. Sensing Distance[m (ft)]@ 2x Margin: 0,003 ... 30 (0,01 ... 78). Output Type/Capacity/Response  Time: L.O. & D.O.PNP/100 mA/0.7 ms. Connection Type: 4-pin micro (M12) QD

159231

42CM-R1MNB-D4

Sensing Mode: Transmitted Beam Receiver. Light Source: Infrared 880 nm or visible red 660 nm. Sensing Distance: 3…20 m (0…65.6 ft). Sensitivity Adjustment: No Adjustment. Output Function: Light and dark operate. Output Type: NPN

158816

42CM-R1MPB-D4

Sensing Mode: Transmitted Beam. Operating Voltage/Supply Current: 10…30V DC, 25 mA. Sensing Distance [m (ft)]: 0,003 ... 20 (0,01 ... 65,6). Output Type/Capacity/Response  Time: Selectable L.O. or D.O.PNP/100 mA/2 ms. Connection Type: 4-pin micro (M12) QD

159232

42CM-R8MNB-D4

Sensing Mode: Transmitted Beam Receiver. Light Source: Infrared 880 nm or visible red 660 nm. Sensing Distance: 3…50 m (0…164 ft). Sensitivity Adjustment: Potentiometer. Output Function:  . Output Type: NPN

159222

42CM-U1MNB-D4

Sensing Mode: Retroreflective. Light Source: Infrared 880 nm. Sensing Distance: 0.003…4 m (0.0 …13.2 ft). Sensitivity Adjustment: No Adjustment. Output Function: Light and dark operate. Output Type: NPN

158810

42CM-U1MPB-D4

Sensing Mode: Retroreflective. Operating Voltage/Supply Current: 10…30V DC, 30 mA. Sensing Distance [m (ft)]: 0,003 ... 4 (0,01 ... 13,2). Output Type/Capacity/Response  Time: L.O. & D.O.PNP/100 mA/4 ms. Connection Type: 4-pin micro (M12) QD
